Table columns

Back to the index.

In addition to rows, you can also divide a table into columns. This page takes a look at the possibilities and the inevitable browser incompatibilities.

What columns are

Any table is divided into rows (<tr>). In addition, you may specify table columns by means of the <col> tag.

HTML

<table>
<col />
<col span="2" />
<tr>
	<td>First TD of first TR</td>
	<td>Second TD of first TR</td>
	<td>Third TD of first TR</td>
	<td>Fourth TD of first TR</td>
</tr>
<tr>
	<td>First TD of second TR</td>
	<td>Second TD of second TR</td>
	<td>Third TD of second TR</td>
	<td>Fourth TD of second TR</td>
</tr>
</table>

The first <col /> tag now creates a column that spans the first cells of all rows. The second <col span="2" /> tag creates a column that spans the second and third cells of all rows. The fourth cell in every row is not a part of any column.

Restrictions

Unfortunately table columns are quite hard to use, because if you use them you essentially have a table that's subdivided in two ways: by rows and by columns. The general rule is that any style defined on a row overrules any style defined on a column.

Secondly, W3C specifies that only a few declarations may be used on columns: border, background, width and visibility. Exception: IE7 and lower allow all declarations.

Thirdly, there's some confusion whether the column styles are applied to the column as a whole, or to the individual <td>s contained by it. The border declaration seems to be applied to the column as a whole, but width is applied to the individual cells.

background-color and color

Let's start with some basics. I want every first cell to have a blue background colour, and every second and third cell to have a green one.

<table>
<col style="background-color: #6374AB; color: #ffffff" />
<col span="2" style="background-color: #07B133; color: #ffffff;" />
<tr>

First TD of first TR	Second TD of first TR	Third TD of first TR	Fourth TD of first TR
First TD of second TR	Second TD of second TR	Third TD of second TR	Fourth TD of second TR

In order to keep the cells readable I also want a white text colour. This, unfortunately, does not work. Most browsers don't obey the color: #ffffff because W3C doesn't allow a color declaration on columns.

Explorer Windows is the exception: it does allow the colour. I tend to side with Microsoft on this one; I don't understand why you can't use all normal styles on columns.

Rows and cells overrule columns

Remember the general rule: any style on a row or cell overrules a column style. Therefore the background-colors of the <td> and <tr> are applied and the ones on the columns are ignored.

<td style="background-color: #000000">First TD of first TR</td>
[... etc ...]
<tr style="background-color: #6374AB;"> // second TR

First TD of first TR	Second TD of first TR	Third TD of first TR	Fourth TD of first TR
First TD of second TR	Second TD of second TR	Third TD of second TR	Fourth TD of second TR

border

Let's apply a border to the second column. This is an allowed declaration, but it doesn't work immediately:

<col span="2" style="background-color: #07B133;
	color: #ffffff; border: 10px solid #000000;" />

First TD of first TR	Second TD of first TR	Third TD of first TR	Fourth TD of first TR
First TD of second TR	Second TD of second TR	Third TD of second TR	Fourth TD of second TR

No border. That's correct behaviour: a border declaration on a column is only valid if the entire table has border-collapse: collapse.

<table style="border-collapse: collapse">
<col span="2" style="background-color: #07B133;
	color: #ffffff; border: 10px solid #000000;" />

First TD of first TR	Second TD of first TR	Third TD of first TR	Fourth TD of first TR
First TD of second TR	Second TD of second TR	Third TD of second TR	Fourth TD of second TR

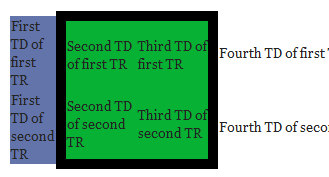

Once the border-collapse has been added, the border works. Unfortunately the browsers disagree on the exact scope of the border. The WebKit browsers do this:

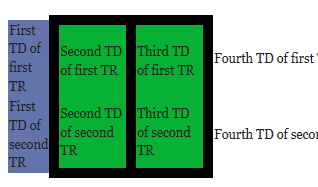

The other browsers add a middle border:

width

On columns width means min-width, which is in keeping with width definitions on table elements in general. More oddly, a width declaration counts for every <td /> column that's spanned by the <col /> tag. Therefore the area of the second <col /> tag has a total width of 10em + cellspacing.

<col style="background-color: #6374AB; color: #ffffff;
	width: 10em" />
<col span="2" style="background-color: #07B133; color: #ffffff;
	width: 5em" />

(I removed the normal texts to ensure every cell gets the defined width instead of being stretched up.)

TD	TD	TD	TD
TD	TD	TD	TD

I use this trick in all my compatibility tables, where I define TD widths via columns. The exact width depends on the col span. I do this so that six IE columns have the same total with as two Firefox ones or three Chrome/Yandex ones.

visibility: collapse

Normally, visibility takes three values:

visible: element visible. This is the default.
hidden: element hidden, but the space it takes remains empty.
collapse: element hidden, and the space it takes is removed, too.

However, the specification clearly states that in the case of columns only collapse is a valid value.

<col span="2" style="background-color: #07B133; color: #ffffff;
	visibility: collapse;" />

First TD of first TR	Second TD of first TR	Third TD of first TR	Fourth TD of first TR
First TD of second TR	Second TD of second TR	Third TD of second TR	Fourth TD of second TR
